Series 2000 Magnehelic® Differential Pressure Gages DWYER
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
AED367.50
/NOS
Share:
Top Selling Products
-
GSI-16G - IBOCO-PVC TUBING
AED290.56 -
60042RSR BEARING / SEAL MAKE FAG
AED14.70 -
RGR25R1010H LINEAR GUIDEWY MAKE HIWIN
AED601.65 -
5202 2RS BALL BEARING MAKE : JAF
AED29.40 -
63/28NR BEARING / SEAL MAKE: KOYO
AED22.00

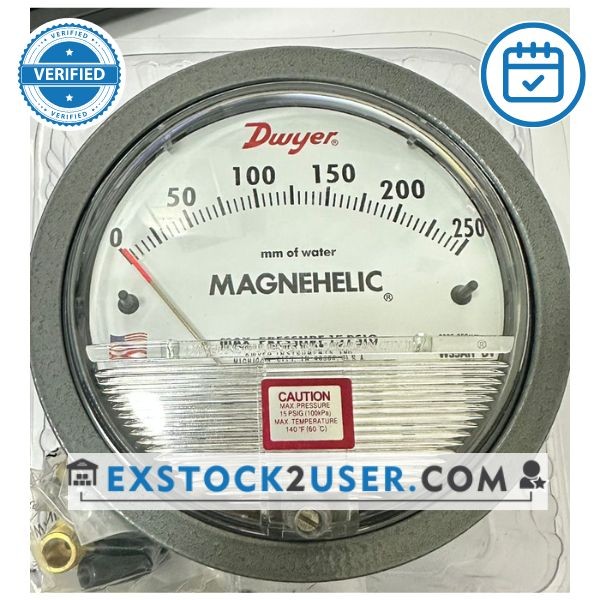

Series 2000
2000-500PA | DWYER
2000-250MMWC | DWYER
MAGNEHELIC, DIFFERENTIAL PRESSURE GAUGE,
0-500 PA
0-250 MMWC
Precision litho-printed scale is accurate and easy to read.
Red tipped pointer of heat treated aluminum tubing is easy to see. It is rigidly mounted on the helix shaft.
Pointer stops of molded rubber prevent pointer over-travel without damage.
"Wishbone" assembly provides mounting for helix, helix bearings and pointer shaft.
Jeweled bearings are shock-resistant mounted; provide virtually friction-free motion for helix. Motion damped with high viscosity silicone fluid.
Zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness.
Helix is precision made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the magnetic field to move the pointer across the scale.
Samarium Cobalt magnet mounted at one end of range spring rotates helix without mechanical linkages.
Calibrated range spring is flat spring steel. Small amplitude of motion assures consistency and long life. It reacts to pressure on diaphragm. Live length adjustable for calibration.
Silicone rubber diaphragm with integrally molded O-ring is supported by front and rear plates. It is locked and sealed in position with a sealing plate and retaining ring. Diaphragm motion is restricted to prevent damage due to overpressures.
Die cast aluminum case is precision made and iridite-dipped to withstand 168 hour salt spray corrosion test. Exterior finished in baked dark gray hammerloid. One case size is used for all standard pressure options, and for both surface and flush mounting.
Blowout plug of silicone rubber protects against overpressure on 15 psig rated models. Opens at approximately 25 psig.
O-ring seal for cover assures pressure integrity of case.
