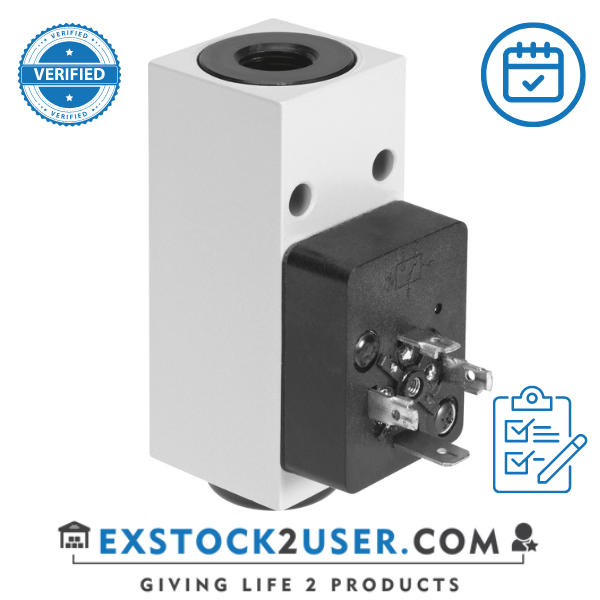

Pressure switch PEV-1/4-A-SW27-B-OD (175252)

Top Selling Products

Description Downloads reviews

Symbol00991472
CE mark (see declaration of conformity)To EU Low Voltage Directive
CE marking (see declaration of conformity)To UK regulations for electrical equipment
Measured variableRelative pressure
Measurement methodPneumatic/electric pressure transducer
Operating pressure1 bar ... 10 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Media temperature-20 °C ... 80 °C
Ambient temperature-30 °C ... 100 °C
Switching element functionChangeover switch
Max. switching frequency3 Hz
Max. switching output voltage AC250 V
Max. switching output voltage DC250 V
Max. output current4000 mA
Electrical connection4-pin Plugs
Type of mountingScrew-in
Mounting positionoptional
Pneumatic connectionG1/4
Product weight900 g
Material housingPA66-GF30 Galvanised steel
Material membraneNBR
Setting range threshold value1 bar ... 10 bar
Degree of protectionIP65
LABS (PWIS) conformityVDMA24364-B1/B2-L
