Pressure transmitter SPTW-P10R-G14-VD-M12 (8000113)
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
AED786.03
/pcs
Share:
Top Selling Products
-
GSI-16G - IBOCO-PVC TUBING
AED290.56 -
60042RSR BEARING / SEAL MAKE FAG
AED14.70 -
RGR25R1010H LINEAR GUIDEWY MAKE HIWIN
AED601.65 -
5202 2RS BALL BEARING MAKE : JAF
AED29.40 -
63/28NR BEARING / SEAL MAKE: KOYO
AED22.00
- Symbol00991967
- ApprovalRCM trademark c UL us listed (OL)
- CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
- CE marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
- Note on materialsRoHS-compliant
- Measured variableRelative pressure
- Measurement methodMetal thin-film pressure sensor
- Start value for pressure measuring range0 MPa
- Start value for pressure measuring range0 bar
- Start value for pressure measuring range0 psi
- End value for pressure measuring range1 MPa
- End value for pressure measuring range10 bar
- End value for pressure measuring range145 psi
- Max. overload pressure20 bar
- Overload pressure2 MPa
- Overload pressure20 bar
- Overload pressure290 psi
- Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-] Liquid media Gaseous media
- Media temperature0 °C ... 80 °C
- Ambient temperature0 °C ... 80 °C
- Accuracy in ± % FS1 %FS
- Repetition accuracy in ± %FS0.1 %FS
- Analogue output0.1 - 10 V
- Linearity error in ± %FS0.5 %FS
- Short circuit current ratingyes
- Operational voltage range DC14 V ... 30 V
- Reverse polarity protectionFor operating voltage
- Electrical connection 1, connection typePlugs
- Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
- Electrical connection 1, number of connections/cores4
- Electrical connection 1, type of mountingScrew-type lock
- Electrical connection 1, connection pattern00995386
- Material connector housingPA
- Type of mountingVia female thread With accessories
- Mounting positionoptional
- Pneumatic connectionG1/4
- Product weight80 g
- Material housingPA VMQ (silicone) High-alloy stainless steel
- Material in contact with the mediumHigh-alloy stainless steel
- Degree of protectionIP67
- Corrosion resistance class CRC4 - Very high corrosion stress
- LABS (PWIS) conformityVDMA24364 zone III
There have been no reviews for this product yet.
Related products
3500B0003V01B000 – PRESSURE TRANSDUCERS
AED1,050.00
3100B0060G01B000
AED1,522.50
3500B600PG0290000F
AED1,050.00
3100B0018G05E000
AED1,050.00
3500B0003V01B000
AED1,050.00
3100B0700S01B000
AED1,050.00
3500B0005G01B000
AED3,097.50

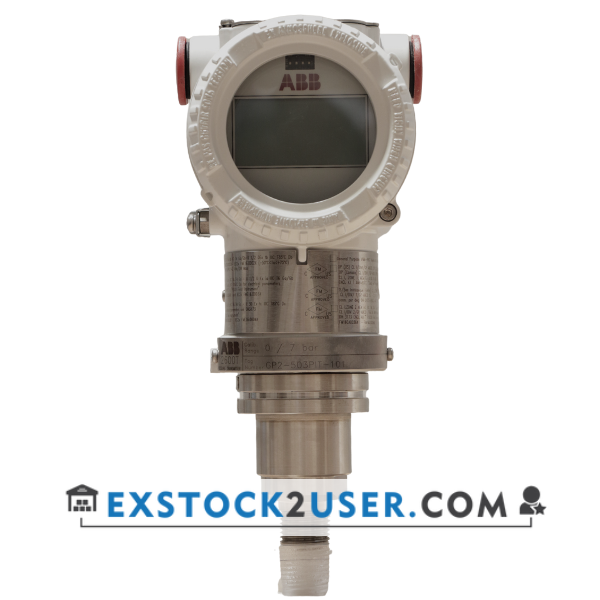

266HSH - ABB - PRESSURE TRANSMITTER
AED6,247.50

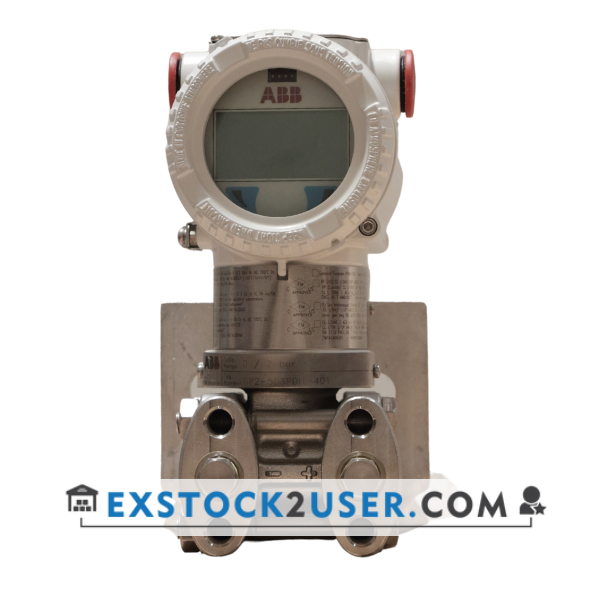

266DSH - ABB - DIFFERENTIAL PRESSURE TRANSMITTER
