Schneider Electric, MGN61522, Multi9 - C60H-DC - MCB - 2P - 2 A - C Curve - 500 V - 5 kA

(0 reviews)
Sold by:
Inhouse product
SCHNEIDER
Price:
AED67.20 /pc
Quantity:
(8 available)
Total Price:
Share:
Top Selling Products
Description Downloads reviews
Main
RangeMulti9
Product nameMulti9 C60H-DC
Product or component typeMiniature circuit-breaker
Device short nameC60H-DC
Device applicationDistribution
Poles description2P
Number of protected poles2
[In] rated current2 A at 25 °C
Network typeDC
Trip unit technologyThermal-magnetic
Curve codeC
Breaking capacity20 kA Icu at 220 V DC conforming to GB 14048.2
10 kA Icu at 440 V DC conforming to GB 14048.2
6 kA Icu at 500 V DC conforming to GB 14048.2
20 kA Icu at 220 V DC conforming to EN/IEC 60947-2
10 kA Icu at 440 V DC conforming to EN/IEC 60947-2
6 kA Icu at 500 V DC conforming to EN/IEC 60947-2
5 kA AIR at 12...500 V DC conforming to UL 1077
Utilisation categoryCategory A conforming to EN/IEC 60947-2
Suitability for isolationYes conforming to EN/IEC 60947-2
Complementary
[Ue] rated operational voltage12...500 V DC
Magnetic tripping limit8.5 x In +/- 20 % AC
[Ics] rated service breaking capacity4.5 kA 75 % conforming to GB 14048.2 - 500 V DC
7.5 kA 75 % conforming to GB 14048.2 - 440 V DC
15 kA 75 % conforming to GB 14048.2 - 220 V DC
15 kA 75 % conforming to EN/IEC 60947-2 - 220 V DC
7.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V DC
4.5 kA 75 % conforming to EN/IEC 60947-2 - 500 V DC
Limitation class3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage500 V DC conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-2
Contact position indicatorYes
control typeToggle
local signallingON/OFF indication
Mounting modeClip-on
mounting supportDIN rail
Comb busbar and distribution block compatibilityTop or bottom: standard
9 mm pitches4
height81 mm
Width36 mm
Depth73 mm
Net weight0.256 kg
ColourGrey
Mechanical durability20000 cycles
Electrical durability3000 cycles L/R = 2 ms
Provision for padlockingPadlockable
Locking options descriptionIn position O
Connections - terminalsTunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 4) - rigid stranded
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 6) - flexible
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 6) - flexible with ferrule
Tunnel type terminal (top or bottom) - 2 cable(s) 1…10 mm² (AWG 18...AWG 8) - rigid stranded
Tunnel type terminal (top or bottom) - 2 cable(s) 1…10 mm² (AWG 18...AWG 8) - flexible
Tunnel type terminal (top or bottom) - 2 cable(s) 1…10 mm² (AWG 18...AWG 8) - flexible with ferrule
Tunnel type terminal (top or bottom) - 3 cable(s) 1 mm² (AWG 18) - flexible stranded
Wire stripping length14 mm for top or bottom connection
Tightening torque2.5 N.m top or bottom
earth-leakage protectionWithout
Environment
StandardsUL 1077
GB 14048.2
EN/IEC 60947-2
Product certificationsUR
CCC
IEC
IP degree of protectionIP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Pollution degree3 conforming to EN/IEC 60947-2
Overvoltage categoryIV
Tropicalisation2 conforming to IEC 60068-2
2 conforming to GB 14048.2
Relative humidity95 % at 55 °C
Operating altitude2000 m
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-40…85 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height3.6 cm
Package 1 Width7.1 cm
Package 1 Length8.5 cm
Package 1 Weight238 g
Contractual warranty
Warranty18 months
There have been no reviews for this product yet.

Related products

AED34.00

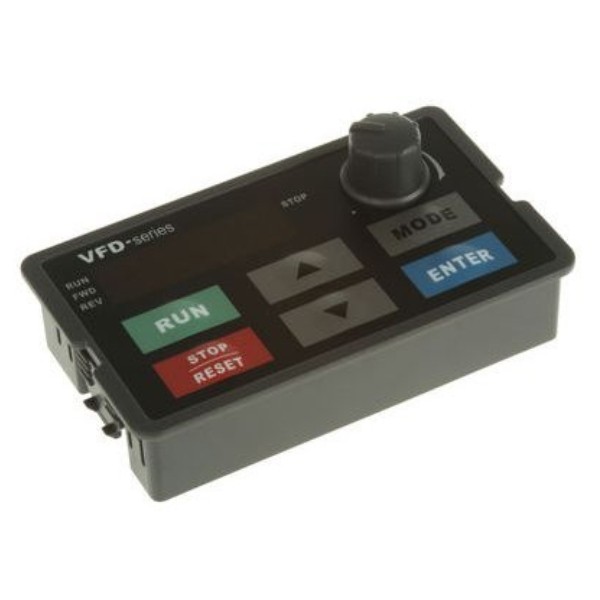

Delta VFD Keypad KPE-LE02

AED2,401.00

Delta Servo ASD-A2-1521-U

AED1,388.00

Delta Servo ASD-B2-0721-B

AED227.00

Frecon VFD 0.5HP

AED430.50

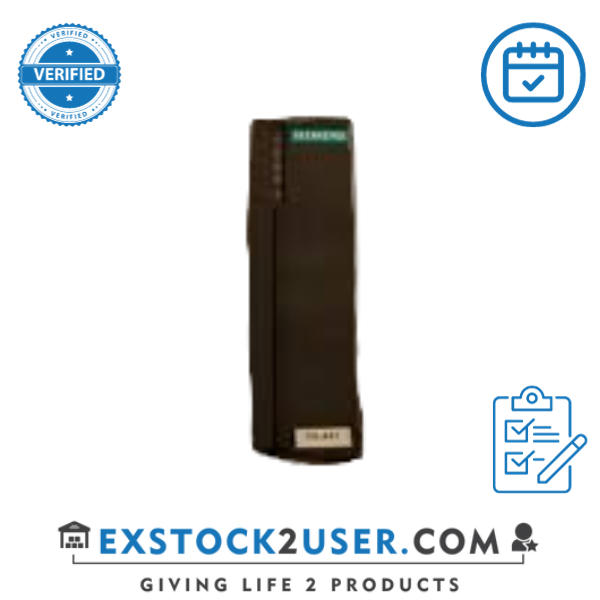

Siemens 6ES7153-2AA02-0XB0

AED672.00

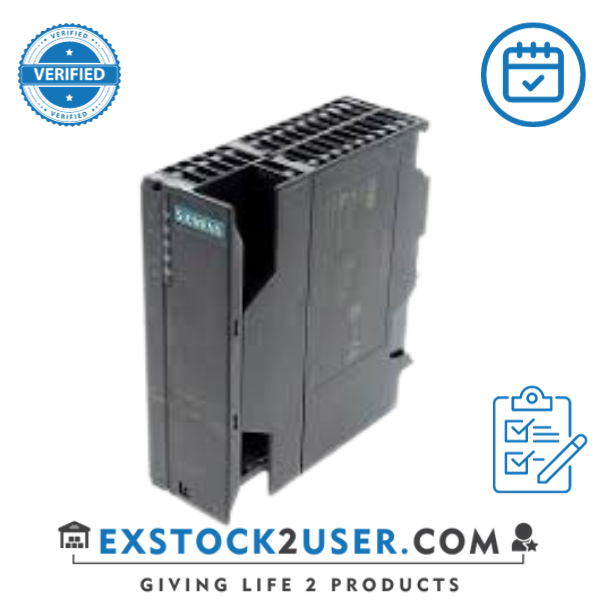

Siemens 6ES7153-2BA01-0XB0

AED726.60

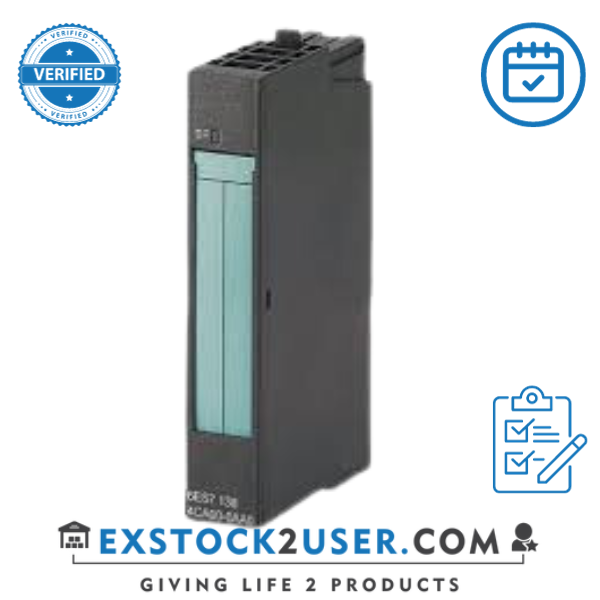

Siemens 6ES7135-4GB01-0AB0

AED656.25

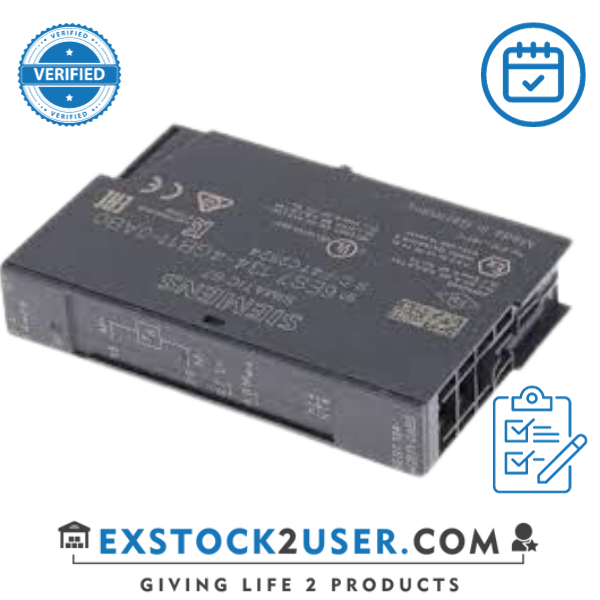

Siemens 6ES7134-4GB11-0AB0

AED672.00

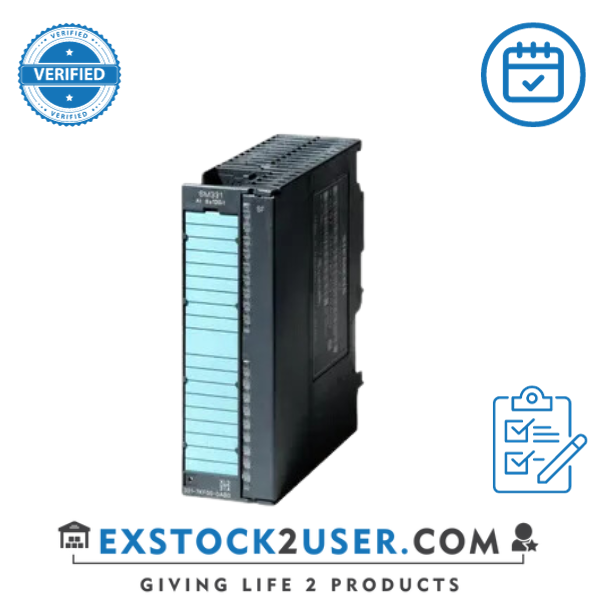

Siemens 6ES7331-1KF02-0AB0

AED3,910.20

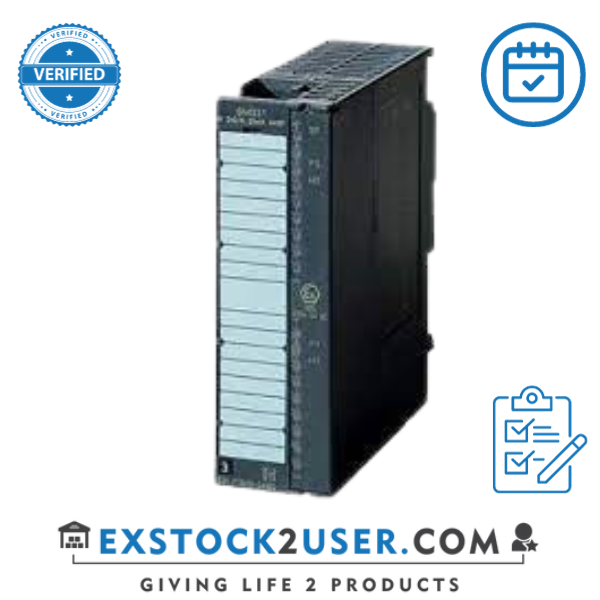

Siemens 6ES7331-7TF01-0AB0
